Product Introduction

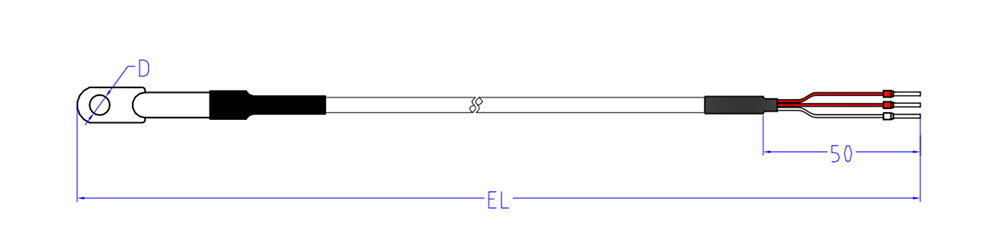

FRT07 Series OT Temperature Sensor are packaged with imported thin film,Used to measure the threaded temperature sensor on the surface of objects.

Product Characteristics

• Temperature factor：TK=3850ppm/k
• Precision rating：1/3B：T0℃≤0.10℃（0~150℃）
• Level A：T0℃≤0.15℃（-50~300℃）
• Level B：T0℃≤0.30℃（-200~500℃）
• Insulation resistance：≥100MΩ@500V&20℃
• Heat coefficient：0.4K/mW （0℃）
• Working current ：100Ω：0.3~1mA
• 500Ω：0.1~0.7mA
• 1000Ω：0.1~0.3mA
• Pressure withstand standard：≥0.5MPa
