We have spent significant amount of efforts in improving the gas line heater design and manufacture process, and achieved tremendous progress in gas line heaters:
- Optimized the watt density to compensate the geometry dependent heat loss to improve the temperature uniformity along gas line with different types of components.
- Clamp-shell structure makes the heater easier to install.
- Molded silicone improves consistency and repeatcbility
- Use of etch foil to enable variable watt density design.
- 180 degrees Celsius maximum operating temperature.
- Eliminate the cold spots inside valves where much higher heating power is required to compensate loss from the valve actuator and stem.
- Dramatic improvement in chamber matching performance due to better repeatability in batches

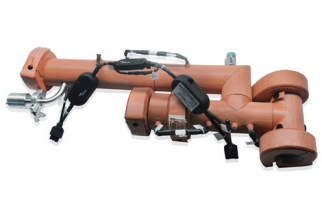

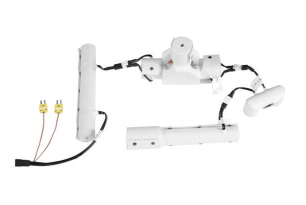

Suitable for heating of gasline pipelines (1/4"~ 1/2" pipe diameter)

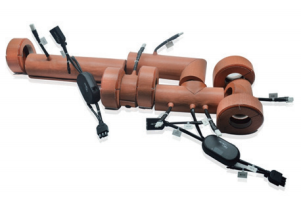

Suitable for heating of gasline pipelines (1.5”~ 2” pipe diameter)
